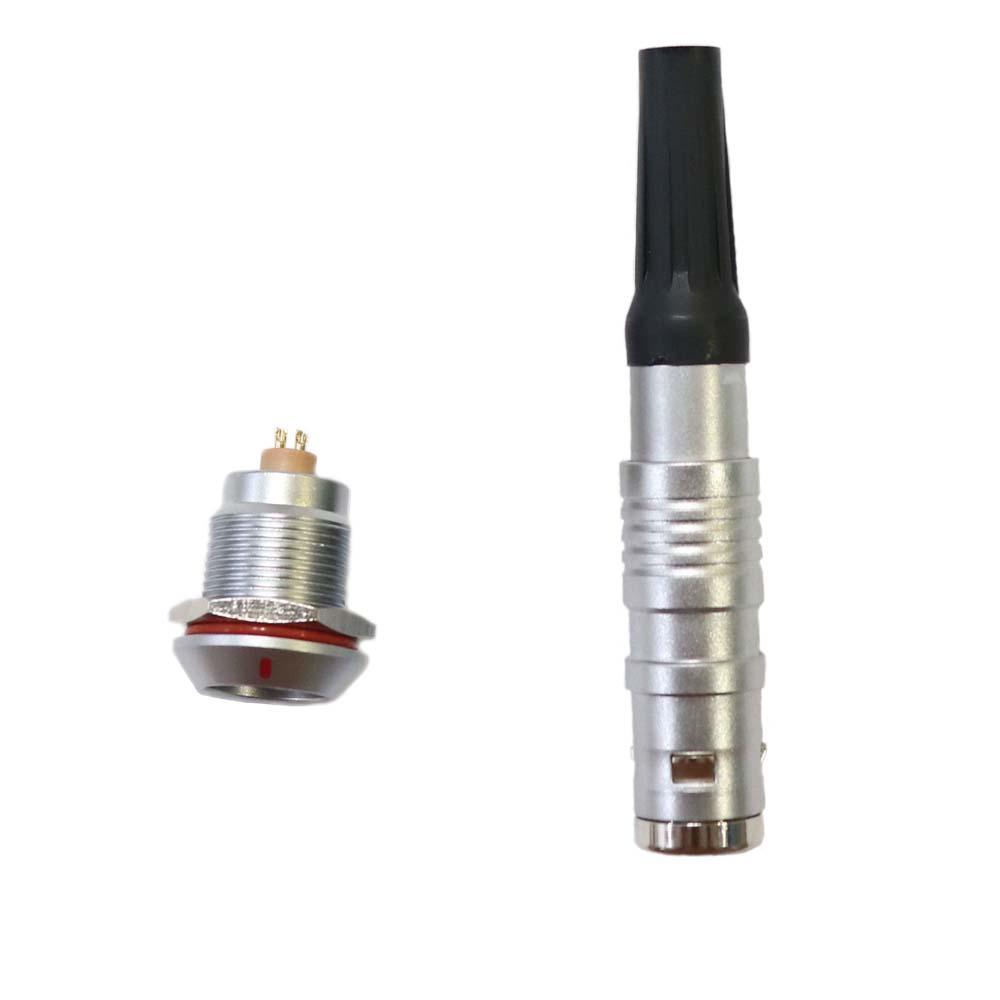

1. This self-latching system is renowned worldwide for its easy and quick mating and unmating features. It provides absolute security against vibration, shock or pull on the cable, and facilitates operation in a very limited space
2. Security of the Push-Pull self-latching system. Quickly insert and pull out, it is very convenient to use.
3. Multiple key options to avoid cross mating of similar connectors , effectively prevent incorrect insertion.
4. Customization services, you can choose the series (size) you need and the number of needles you want
5. Made of metal, high quality and durable.
6. About bend relief: we have a wide range of colors to choose from, can effectively prevent mis-insertion
7. B series belongs to the standard keyed Series, Ingress protection is IP50, suitable for indoor use.
8. K series belongs to the watertight keyed Series, Ingress protection is IP 66 to IP68, suitable for outdoor use.
There are many kinds of contacts in each series.
You can order from us according to your requirements.
Different Series Connector Pins Number :
1. 00B Series：2 pins , 3 pins, 4 pins ,5 pins
2. 0B Series：2 pins , 3 pins, 4 pins ,5 pins , 6 pins, 7 pins ,9 pins
3. 1B Series：2 pins , 3 pins, 4 pins ,5 pins , 6 pins, 7 pins ,8 pins, 10 pins ,12 pins , 14 pins, 16 pins
4. 2B Series：2 pins , 3 pins, 4 pins ,5 pins , 6 pins, 7 pins ,8 pins, 10 pins ,12 pins , 14 pins, 16 pins , 18 pins, 19 pins
5. 3B Series：3 pins, 4 pins , 7 pins ,8 pins, 10 pins ,12 pins , 14 pins, 16 pins , 18 pins, 20 pins , 24 pins, 26 pins , 30 pins
6. 0K Series：2 pins , 3 pins, 4 pins ,5 pins , 6 pins, 7 pins ,9 pins
7. 1K Series：2 pins , 3 pins, 4 pins ,5 pins , 6 pins, 7 pins ,8 pins, 10 pins ,14pins , 16 pins
8. 2K Series：2 pins , 3 pins, 4 pins ,5 pins , 6 pins, 7 pins ,8 pins, 10 pins , 12pins , 14pins , 16 pins, 18 pins ,19 pins
9. 3K Series：2 pins , 4 pins , 6 pins, 8 pins, 10 pins , 12pins , 14pins , 16 pins, 18 pins ,20 pins
usage: beauty equipment; medical devices; various high-end test equipment; micro drones; detection equipment; video equipment; visual equipment; military communication equipment, mobile equipment, etc. are widely used
The features of B series connectors:
– security of the Push-Pull self-latching system
– multipole types 2 to 64 contacts
– solder, crimp or print contacts (straight or elbow)
– high packing density for space savings
– multiple key options to avoid cross mating of similar connectors
– keying system («G» key standard)for connector alignment
– 360° screening for full EMC shielding.
K series connectors have been specifically designed for outdoor applications.
They include an inner sleeve and two seals to prevent penetration of solids or liquids into the housing formed by the plug,free socket, fixed socket or coupler. All models of this series are watertight when mated to give a protection index of IP68as per IEC 60529 standard (in mated condition) when correctly assembled to an appropriate cable (IP66 otherwise).
The features of K series connectors:
– security of the Push-Pull latching system – watertight connection (IP 68/IP 66)
– multipole types 2 to 64 contacts – solder, crimp or print (straight or elbow) contacts
– keying system («G» key standard) for connector alignment
– multiple key options to avoid cross mating of similar connectors
– 360° screening for full EMC shielding – high packing density for space savings
– rugged housing for extreme working conditions.
If you have any question, please feel free to contact us, and we are always here being ready to help.
